Product Selector
Discover the wide-variety range of products you can choose among.

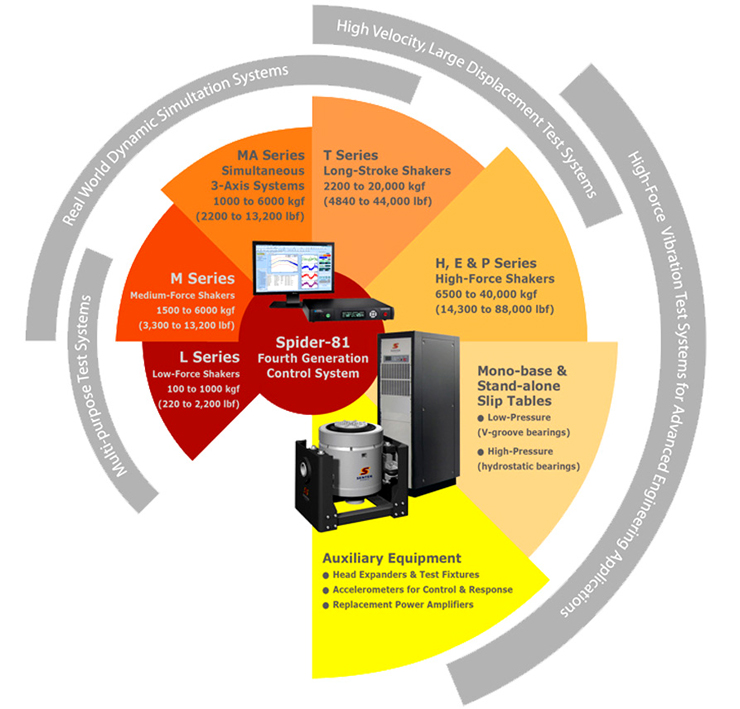

Please click on a Series Tab within the illustration for detailed product information.
-
COMPARE PRODUCTS
-
Performance
- Sine & Randon Force (kgf/N) (lbf)
- Shock Force (kgf/N (lbf)
- Frequency Range (Hz)
- Cont. Displacement pk-pk mm (in)
- Shock Displacement pk-pk mm (in)
- Max Velocity m/s (in/s)
- Max Acceleration (sine) m/s² (g)
- Armature Diameter mm (in)
- Effective Armature Mass kg (lb)
- Max Static Payload kg (lb)
-
L0315M-PAS103
- 300/2940 (660)
- 600/5880 (1320)
- 5 – 4500
- 40 (1.6)
- 40 (1.6)
- 2.0 (78.7)
- 980 (100)
- 160 (5.9)
- 3 (6.6)
- 120 (264)
-
L0620M/PAS106
- 600/5880 (1320)
- 1200/11760 (2640)
- 5 – 5000
- 51 (2.0)
- 51 (2.0)
- 2.0 (78.7)
- 980 (100)
- 200 (7.9)
- 6 (13,2)
- 200 (440)
-
L1024M/PA115
- 1000/9800 (2200)
- 2000/19600 (4400)
- 5 – 3500
- 51 (2.0)
- 51 (2.0)
- 2.0 (78.7)
- 980 (100)
- 240 (9.5)
- 10 (22.0)
- 200 (440)
-
